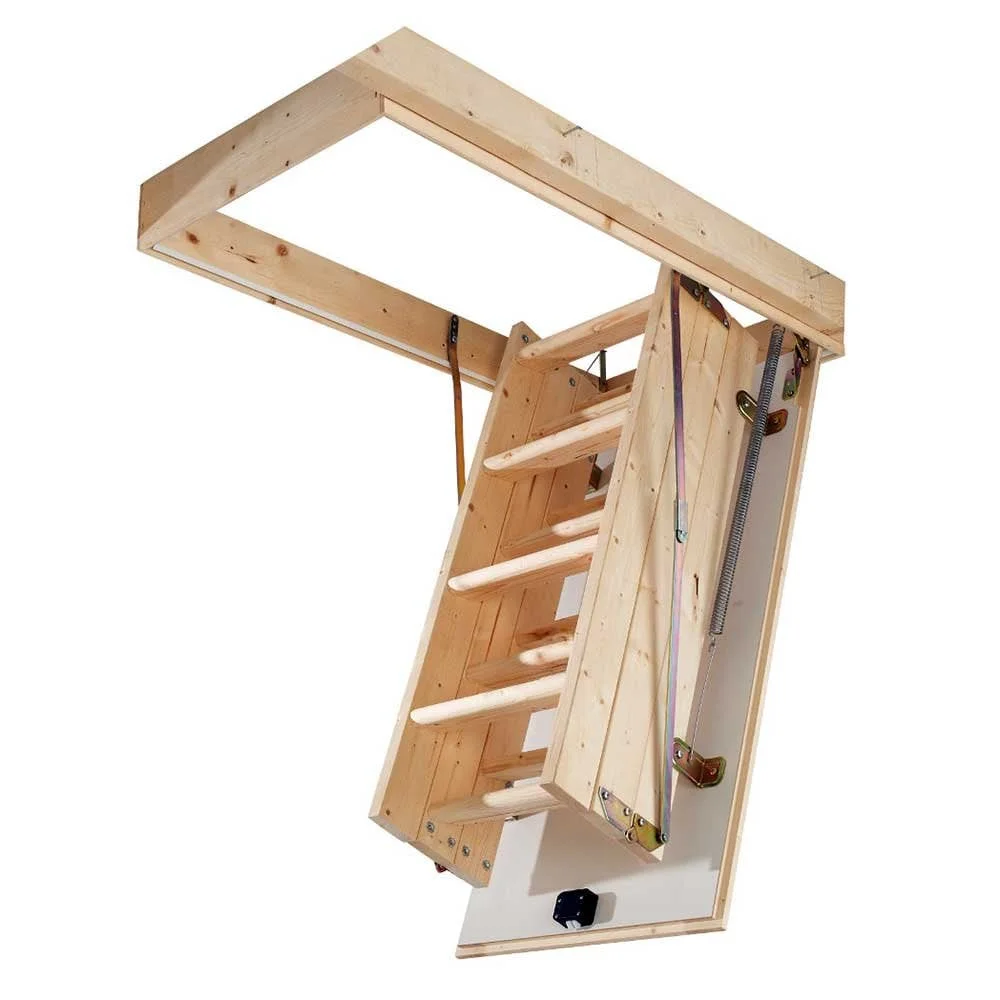

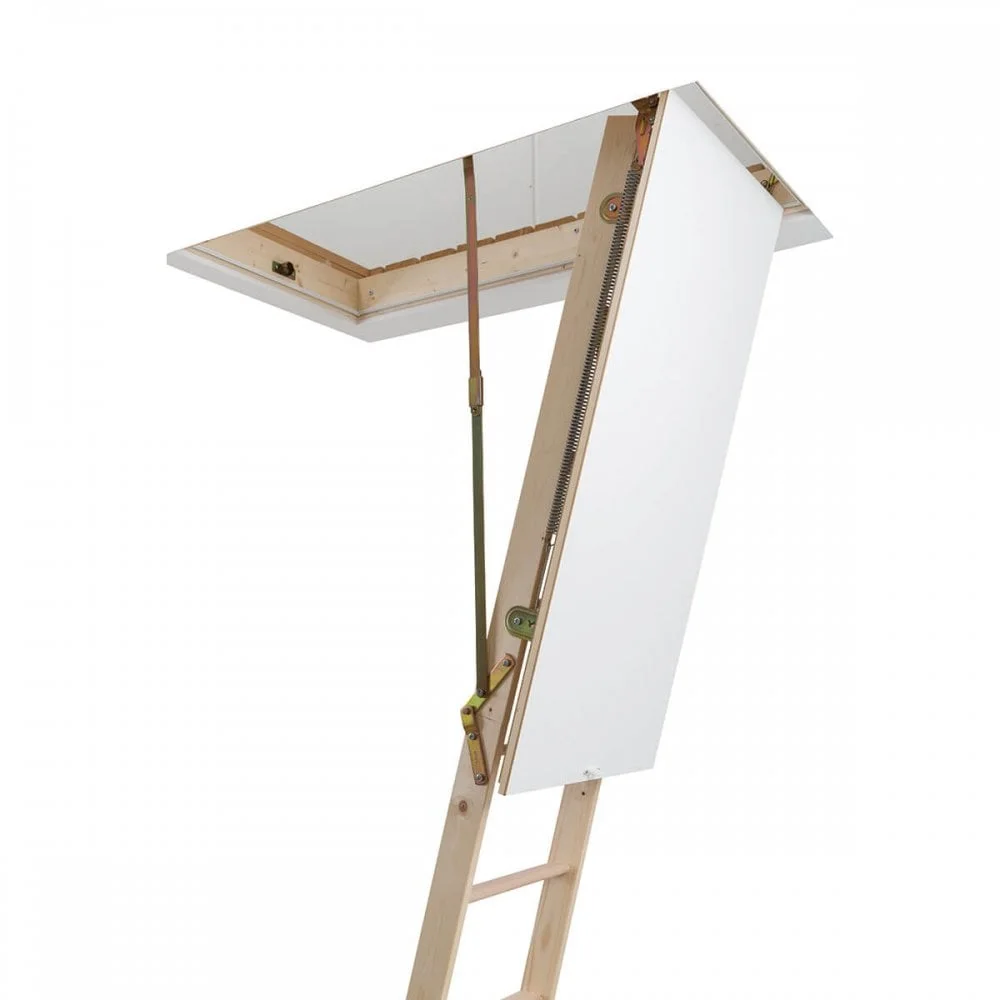

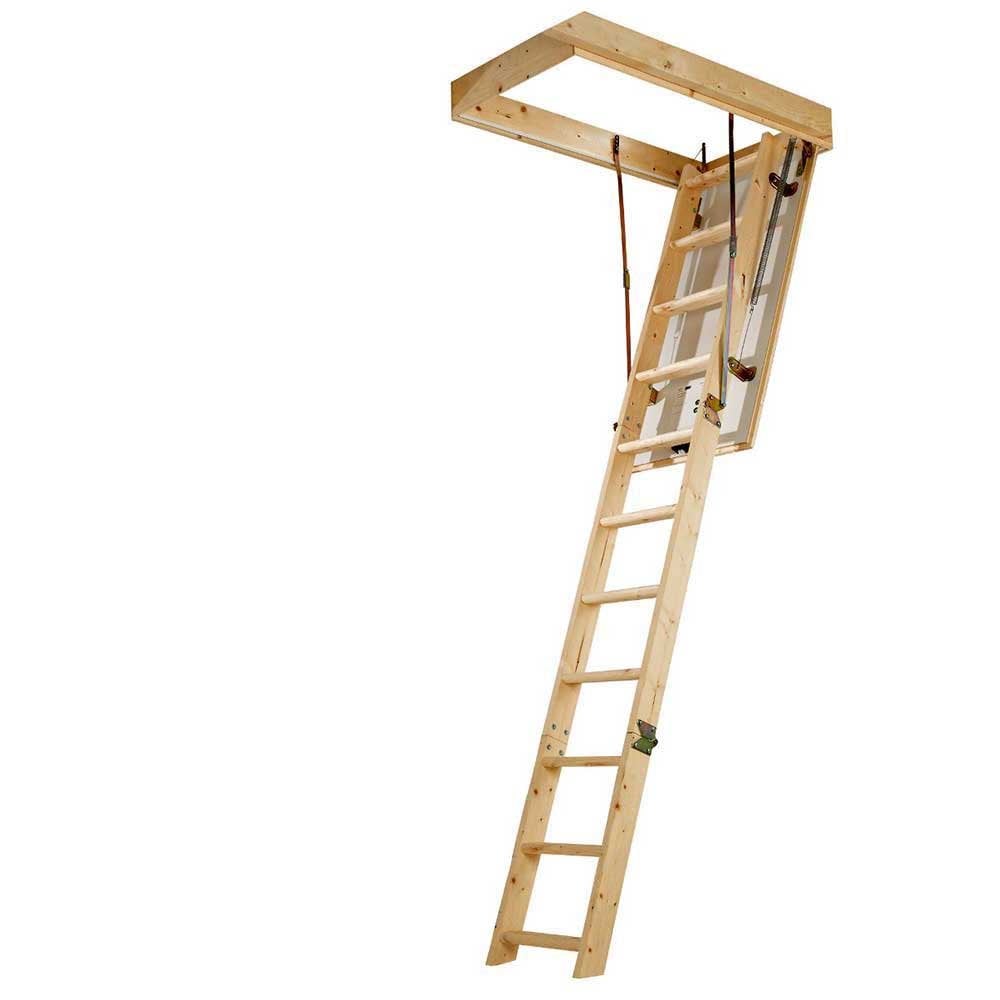

Residential loft ladder
1130×0550 loft hatch and three section folding ladder
Suits a floor to ceiling height of up to 2.85m
Manufactured to suit 0560-0565mm joist opening
Width 310mm, outer edge to outer edge
150kg weight limit
26mm insulated door, with a u-value of 1.22
Additional extension kit available
| Loft Hatch casing size | 1130 x 550mm |
| Minimum Ceiling cut out required | 1135 x 555mm |
| Maximum Floor to Ceiling height | 2920mm (or 3.62m with extension – separate item) |
| Loft Hatch casing height | 115mm x 18mm thick |
| Number of ladder treads | 12 (69 x 18mm @ 250mm centres) |
| Insulation EPS | U Value 1.22 W/m2K |
| Maximum landing space | 1370mm |
| Maximum swing clearance | 162mm |
| Maximum safe loading | 150kg – Tested to EN14975 |
| Material | Pine (Ladder) Spruce (Casing) |
